12VHPWR – Materials and Specifications
Power delivery:
Our 12VHPWR is capable to deliver up to 600w. The calculation is as following:
– 6 (12v) wires x 12v x 9.2A = 662,4W
Material Specification:
1) Terminal: High Conductivity Copper Alloy
Rated current: 9.2A
Rated temperature: -25c~85c
Contact resistance: 10mΩ max.
2) Wire: 16AWG AWM UL1061
Rated temperature: 80c
Rated voltage: 300v
Maximum resistance (at 20c): 14.60Ω/ Km
Conductor: tinned copper
3) Connector
UL94-V0 (Hybrid 3.0mm dan 2.0mm 12Pin+4Pin)
UL94-V2 (4.2mm 8Pin)

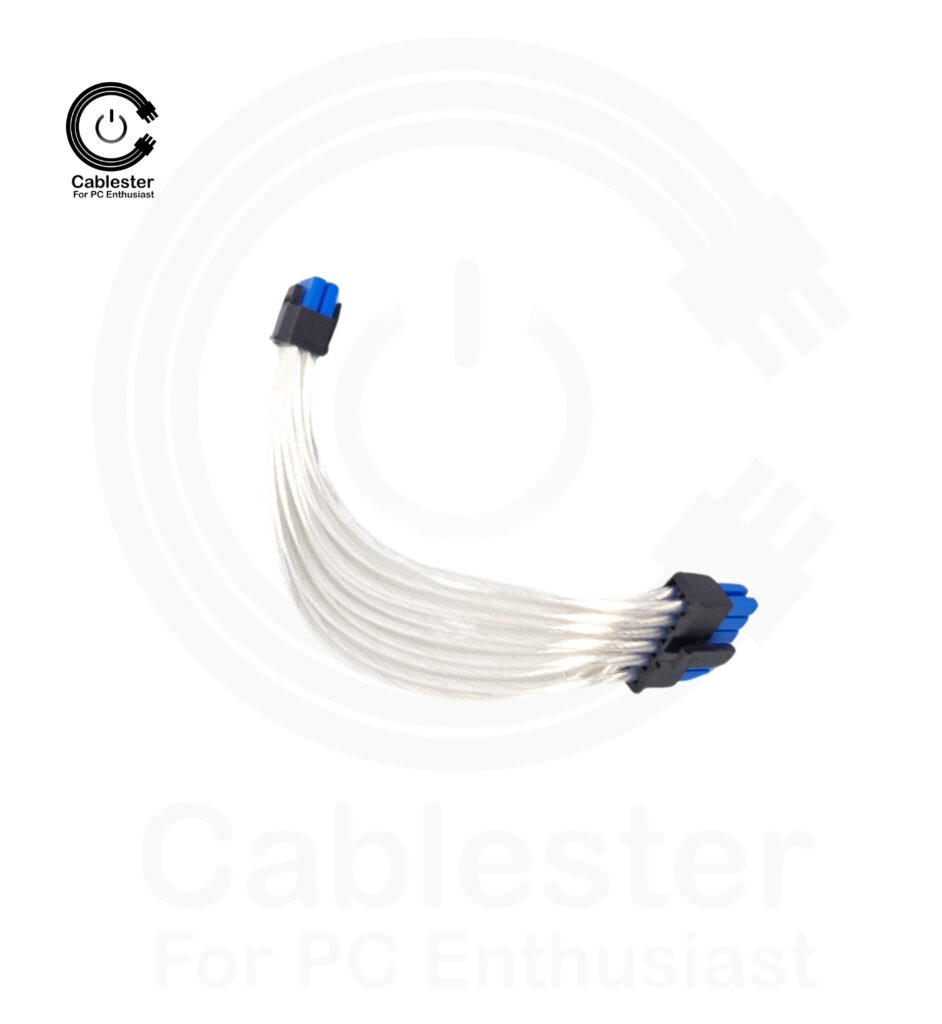

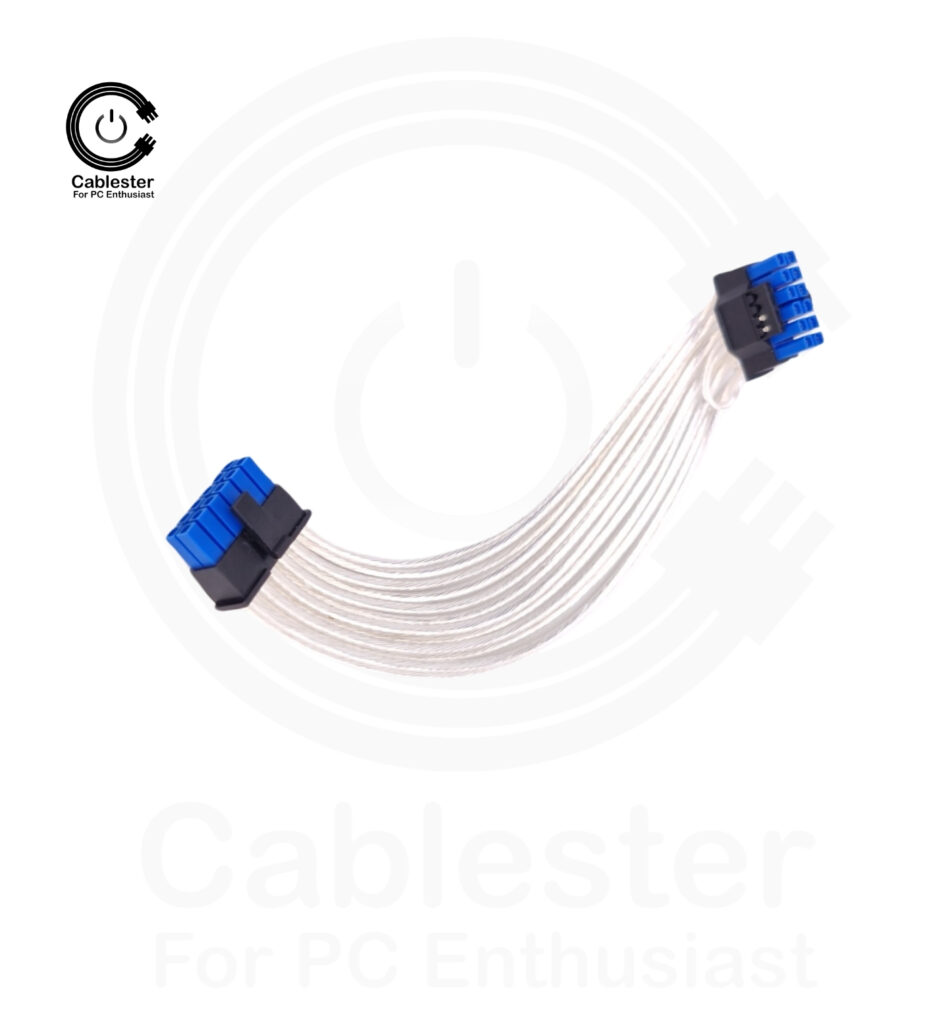

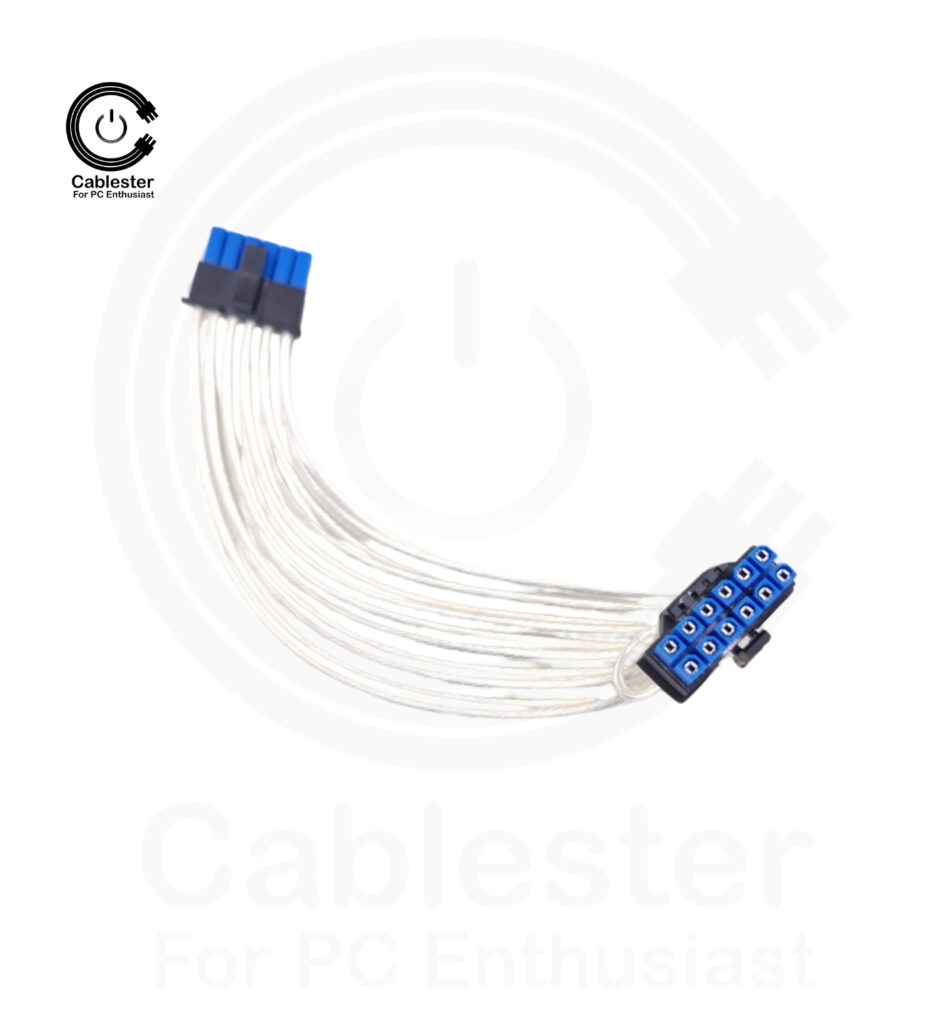

12vhpwr – Silver Teflon Wire

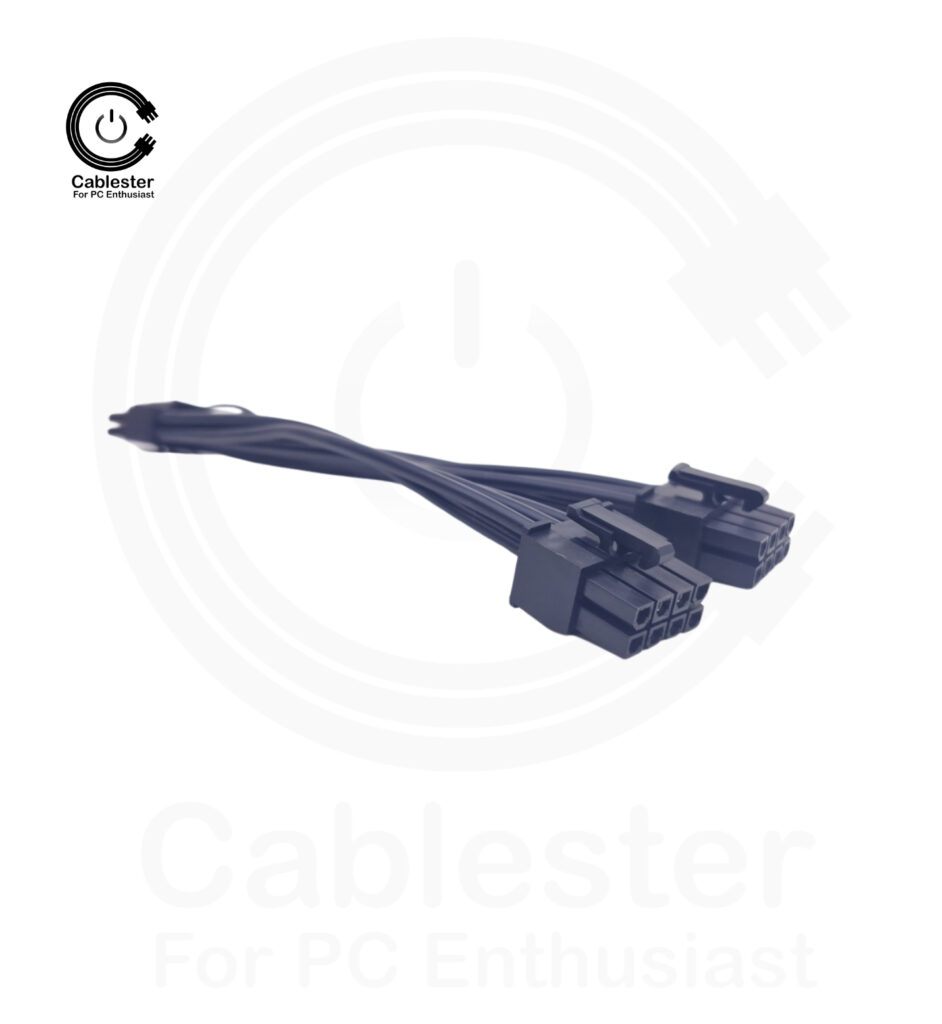

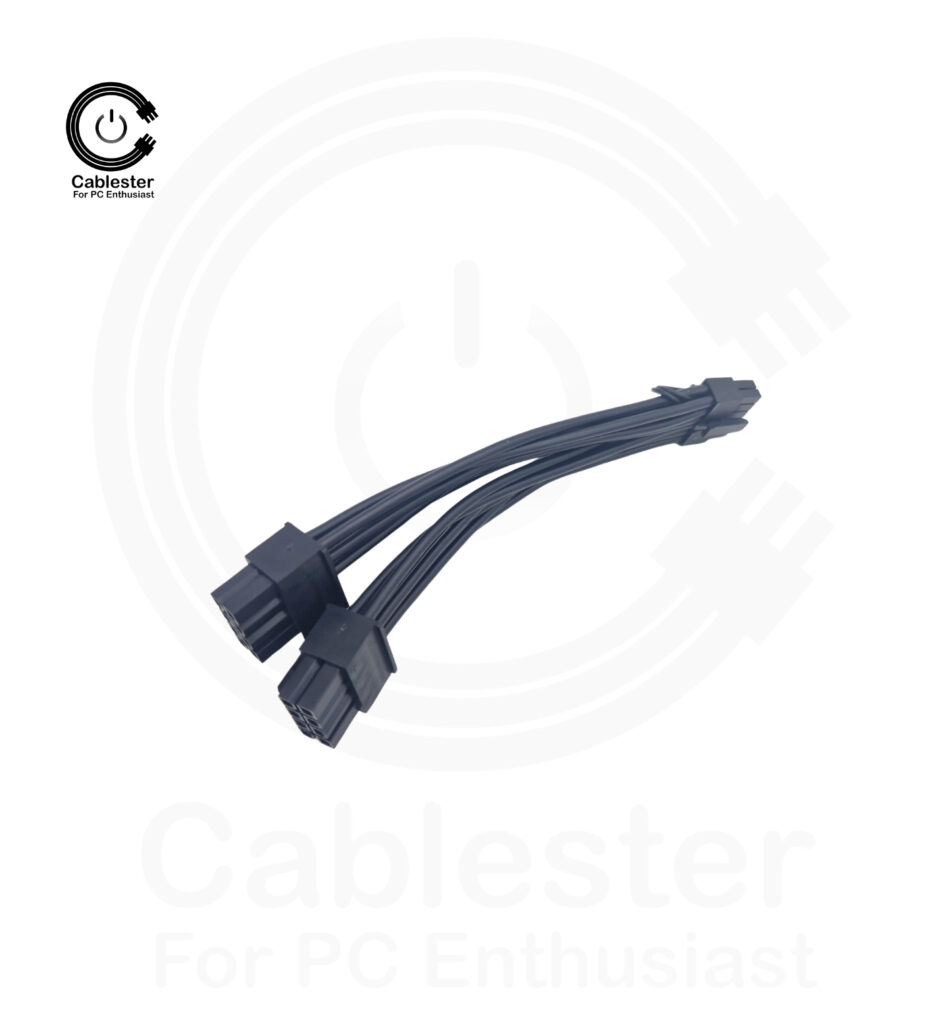

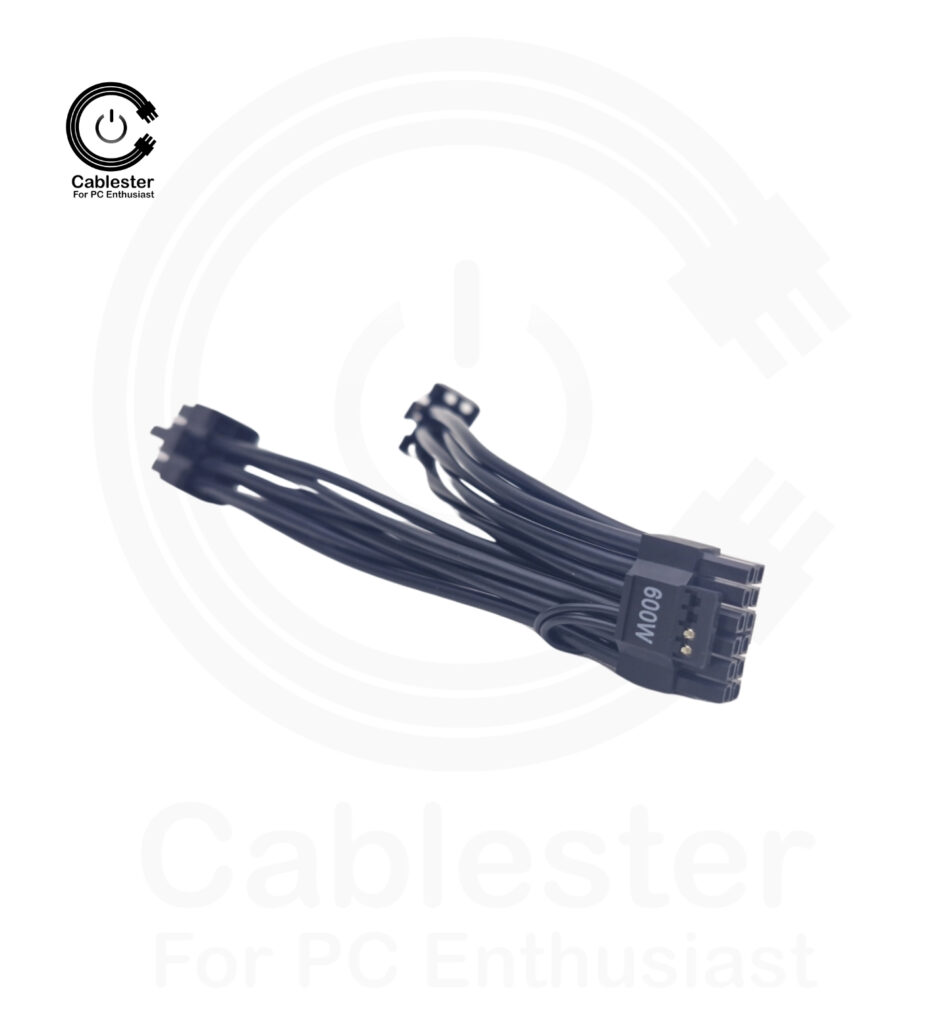

12vhpwr – Black Silicone Wire
