Description

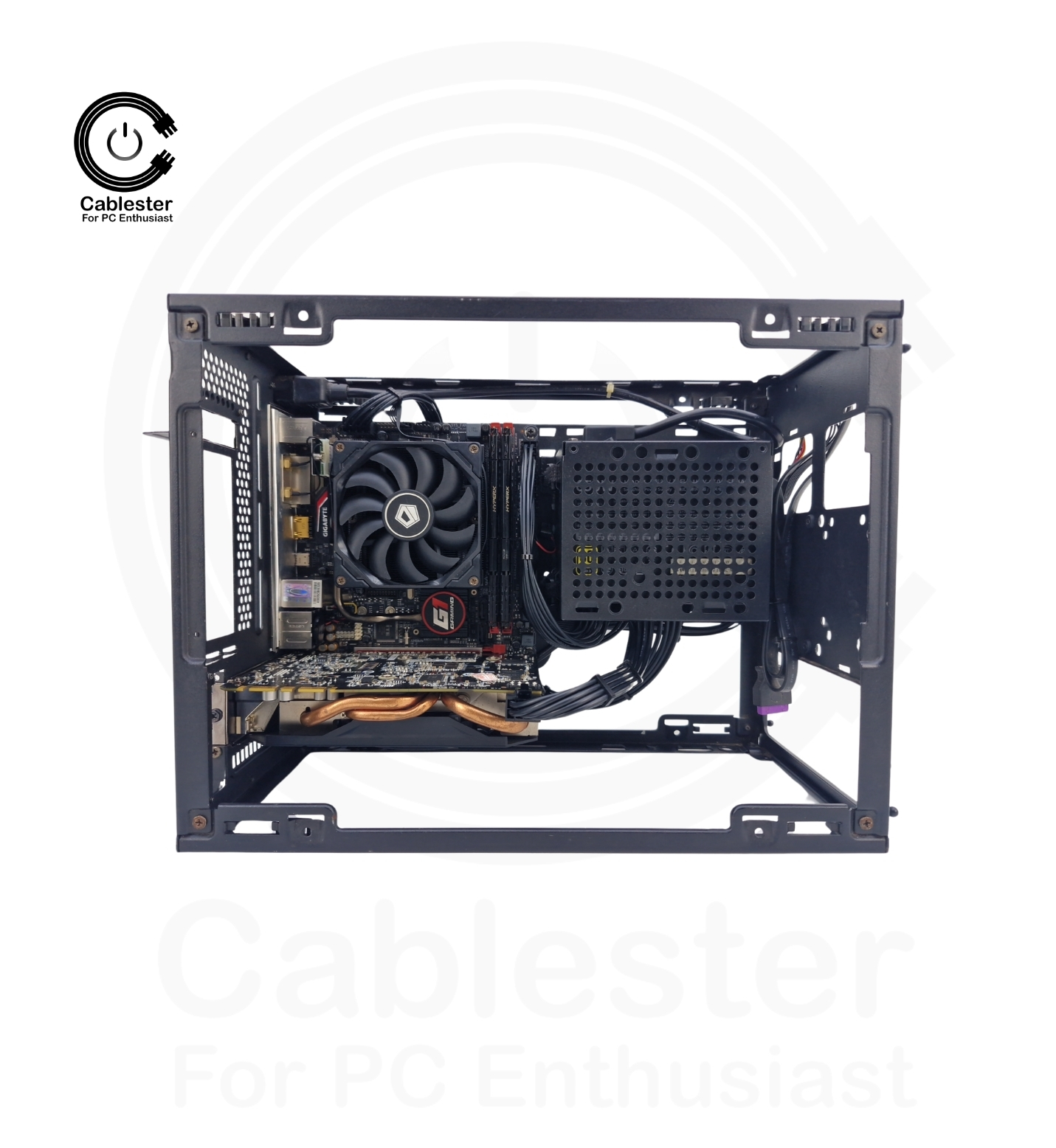

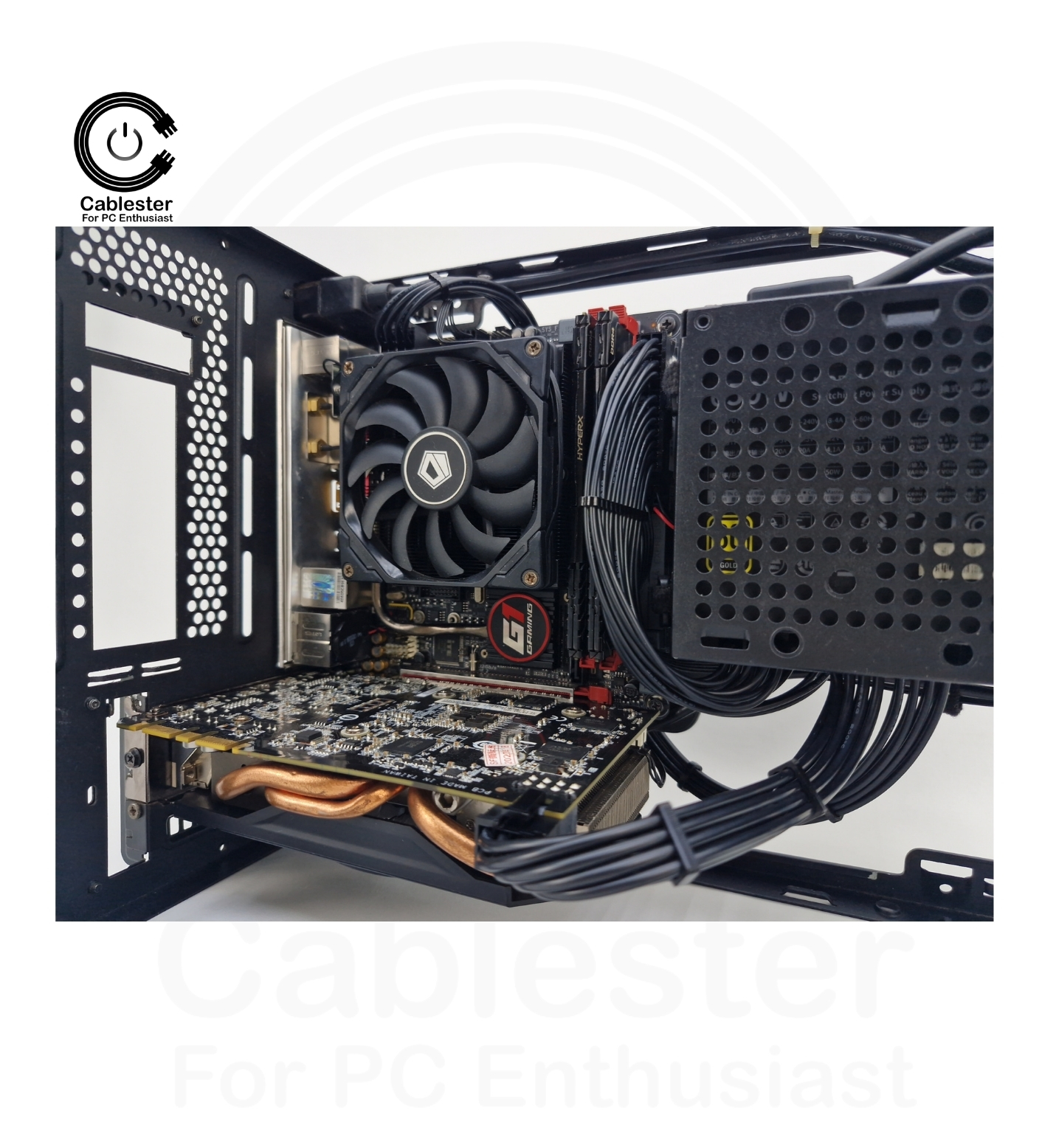

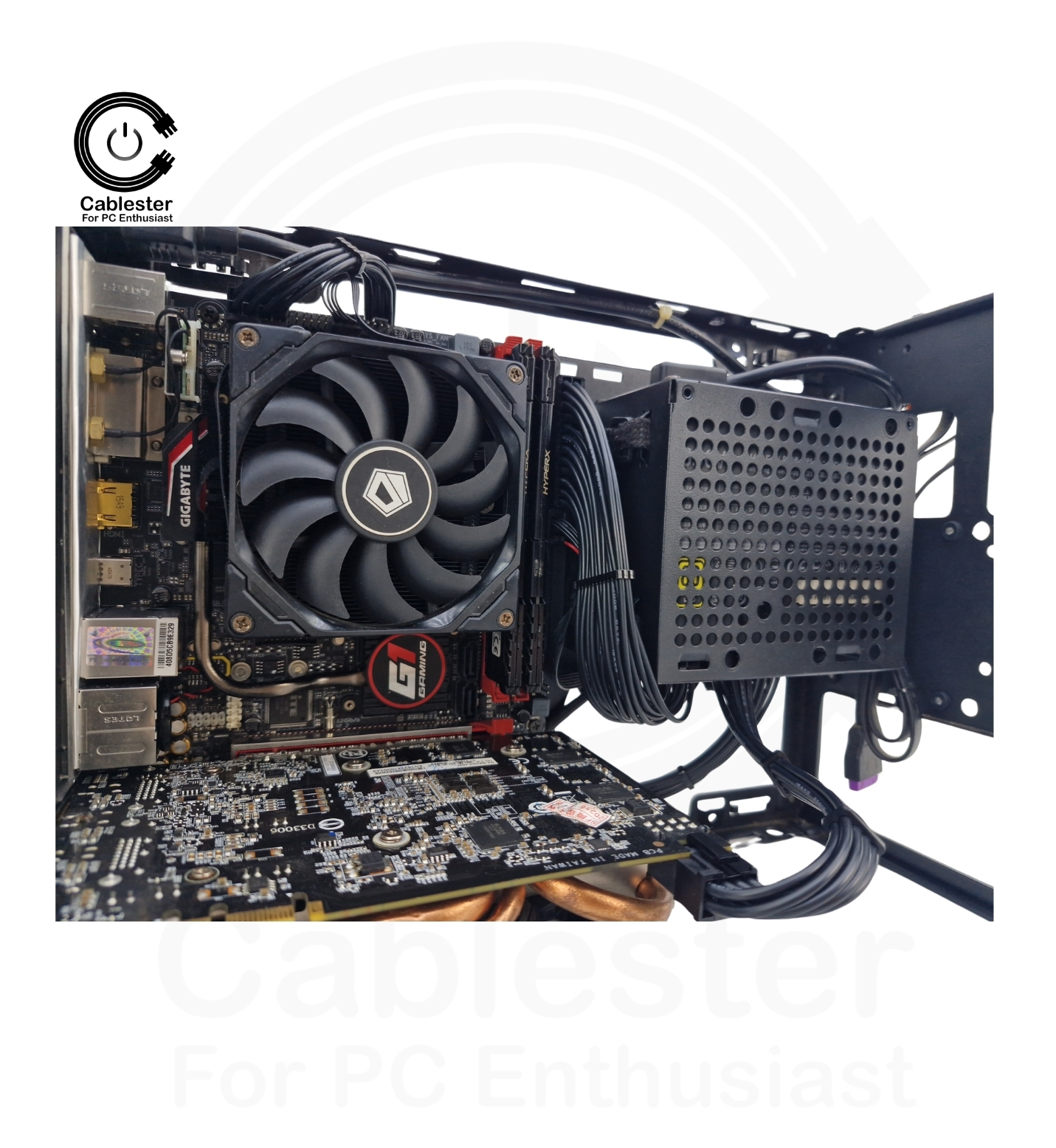

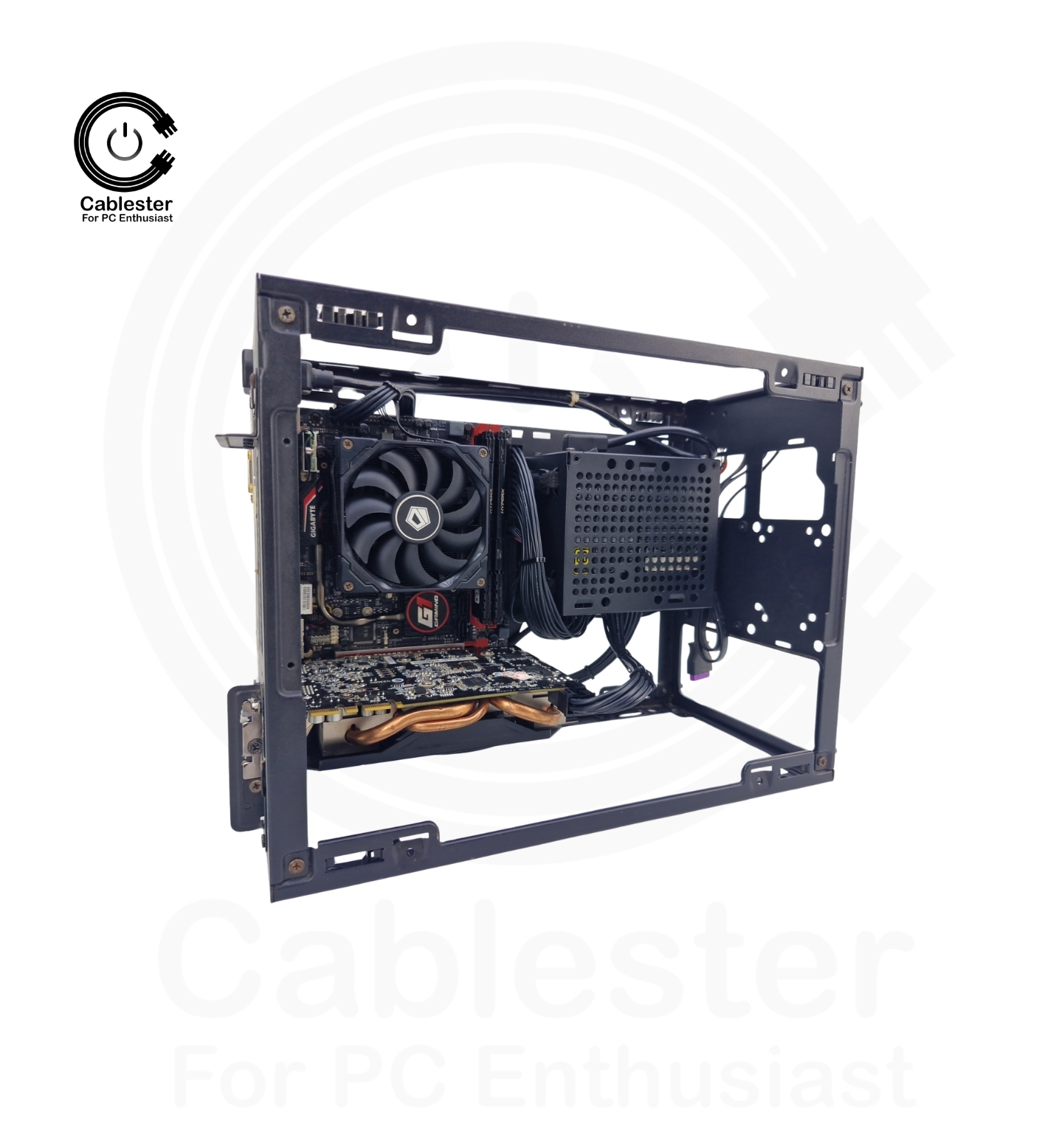

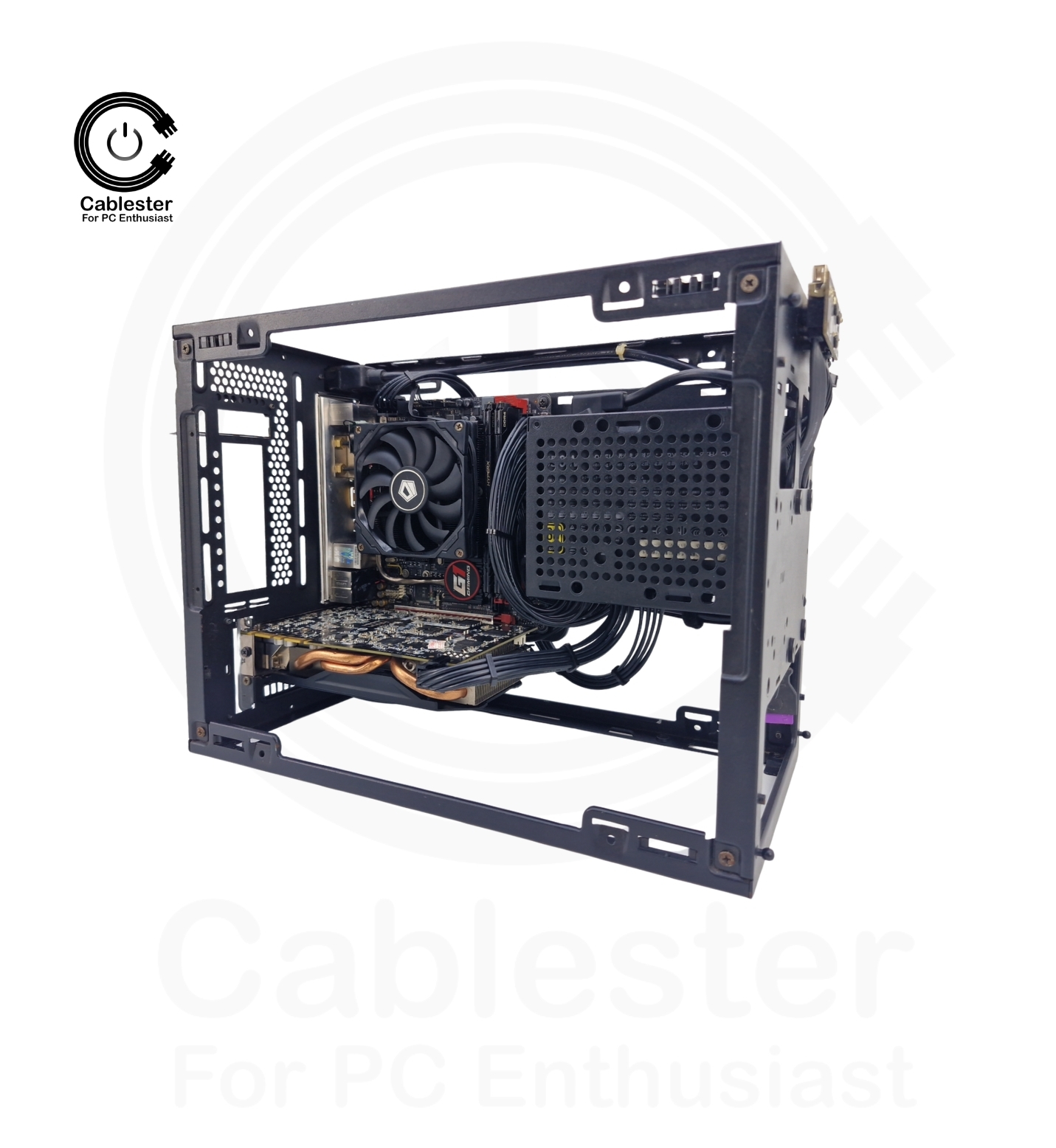

Handmade full cable replacement/ modular UNSLEEVED SILICONE, DEBOSS, and TEFLON cables for NR200, and other similar layouts (Cougar QBX and Ncase M1)

Please specify your configuration in the Personalization field
– PSU: Front Mount or Side Mount
– PSU Fan orientation: Intake/ Exhaust
– GPU: Vertical mount or Horizontal mount

Unless specify, the cable will be measured based on Reference layout:
– Side mount PSU with horizontal GPU

—List of PSU Compatibility—
– 1stPlayer SFX 650 Gold/ 750 Platinum/ 850 Platinum (non PCIe5)
– Cooler Master SFX (V650, V750, V850)
– Corsair SF Gold/ Platinum series Type 4 2019 (SF450, SF600, SF750)
– Enermax Revolution SFX
– EVGA GM series
– Fractal Ion SFX-L Gold
– FSP Dagger Pro 550/650/750/850 (non PCIe5)
– Lian Li SP750, SP850
– Montech Century Mini SFX 750
– Phanteks Revolt 650/750 Gold/ 750 Platinum
– Seasonic SGX Gold SFX-L (2018)
– Seasonic SGX Gold SFX (2021)
– Seasonic SPX Platinum SFX (2021)
– Silverstone SX500-G, SX650-G, SX700-G, SX700-PT
– Thermaltake TT Premium 450/550/650
– (ATX 3.0) 1stPlayer SFX 650 Gold/ 750 Platinum/ 850 Platinum (PCIe5)
– (ATX 3.0) ASUS Loki SFX-L
– (ATX 3.0) Coolermaster V-Series ATX 3.0 (V750 and V850)
– (ATX 3.0) Coolermaster V1100/ V1300 SFX
– (ATX 3.0) Corsair SF-L Series Type 5 SFX-L (SF850L/ SF1000L)
– (ATX 3.0) Corsair SF Series Type 5 SFX 2024 (SF750/ SF850/ SF1000)
– (ATX 3.0) FSP Dagger Pro 850 (PCIe5)
– (ATX 3.0) Phanteks Revolt 850w Platinum
– (ATX 3.0) Silverstone EX850R
– (ATX 3.0) Thermaltake Toughpower SFX Gold (750w and 850w)
– (ATX 3.0) Thermaltake Toughpower SFX Platinum (750w, 850w, and 1000w)

—List of Compatible Cases—
1) NR200 (tempered/ mesh)
2) NR200p MAX Vertical GPU mount
3) NR200p V2 Vertical GPU mount
4) Ncase M1 Classic
3) Cougar QBX
4) Meshroom D
5) FormD T1 Reference
6) Loque Ghost R1

Kit:
Kit 1: 1x 24 pin, 1x 8p EPS, 1x 8p PCIE
Kit 2: 1x 24 pin, 1x 8p EPS, 1x 8p PCIE, 1x 6p PCIE
Kit 3: 1x 24 pin, 1x 8p EPS, 2x 8p PCIE
Kit 4: 1x 24 pin, 1x 8p EPS, 3x 8p PCIE
Kit 5: 1x 24 pin, 1x 8p EPS, 1x 12p PCIE (for RTX 30s FE)
Kit 6: 1x 24 pin, 1x 8p EPS, 1x 12vhpwr/12v 2×6 (for RTX 40s and RTX 50s)

–Materials–
– Wire: AWG18 Silicone and AWG16 Silicone for GPU cable
– Terminal: High Current System (HCS) Leaf Spring Terminal 9.2 Amps

Available wire color
– Black
– White
– Grey
– Red
– Blue
– Sky Blue
– Purple
– Brown

–Materials–
– Wire: Teflon wire 1.0mm2 (17 AWG), and 1.2mm2 (16 AWG)
– Terminal: High Current System (HCS) Leaf Spring Terminal 9.2 Amps

Available teflon wire color:
– Clear/ Silver
– Black
– Blue
– Grey
– Green
– Purple
– Red
– Copper
– Clear Blue

–Materials–
– Wire: AWG18 Embossed and AWG16 Embossed for GPU cable
– Terminal: High Current System (HCS) Leaf Spring Terminal 9.2 Amps

Available teflon wire color:
– Black

See FAQ below for the processing time, shipping options and other things

Please note that some countries (especially EU) will have Express shipping by default

Is your place not on the shipping list?
Is your case not listed yet in our shop?
Can’t find what you are looking for?
Please chat so we can check and update for you
